This was the very first locomotive in the Transcontinental range and the only new locomotive release for 1954.

1956- Mk2 Coupling added to the front bogie.

1959- Mk3 couplings and light bulb added

1962- smoke unit added and name "HIAWATHA"

1964- Dropped from UK market, still sold abroad until 1972

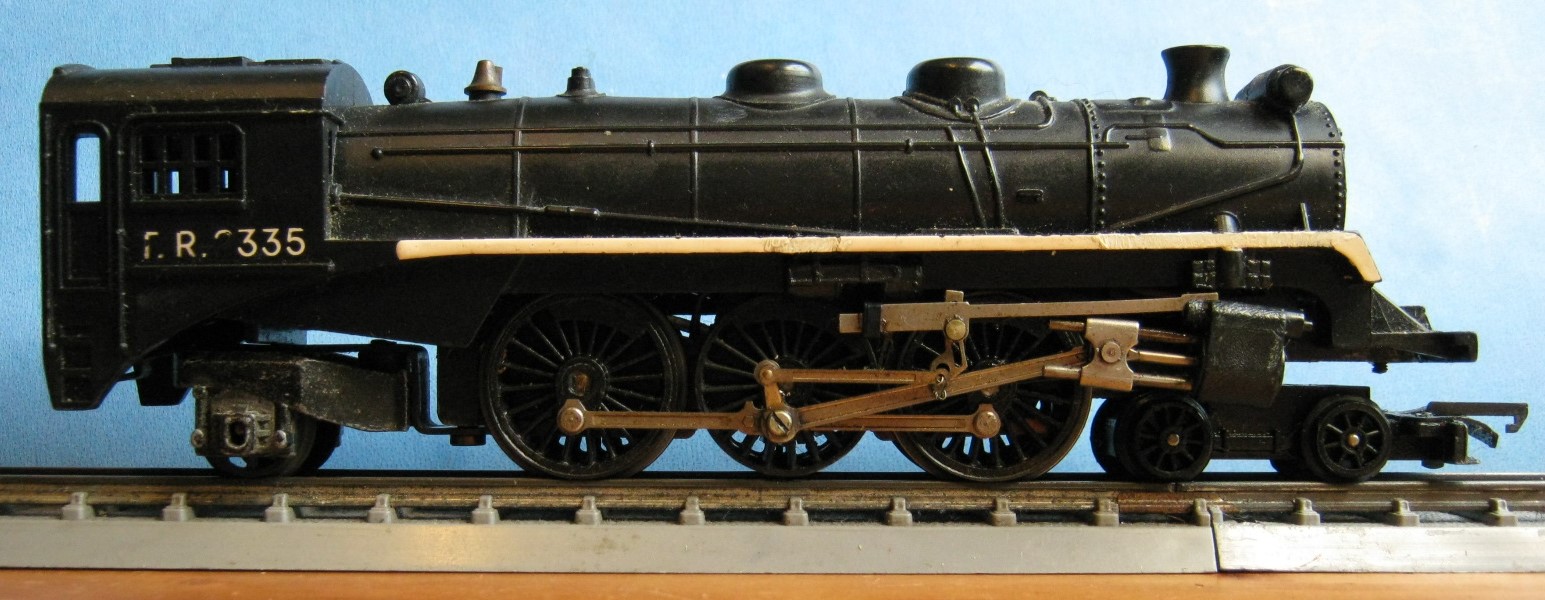

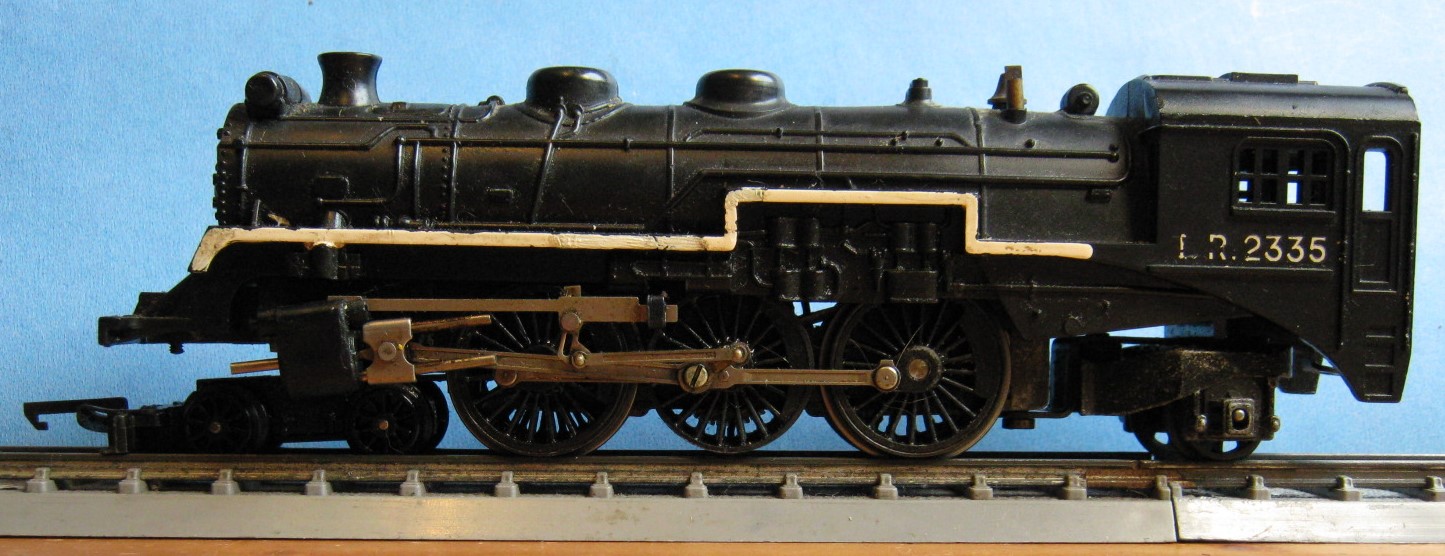

The side view showing the Mk3 coupling, dating this locomotive as from 1959

Note that the piston block has become deformed over the last 70 years.

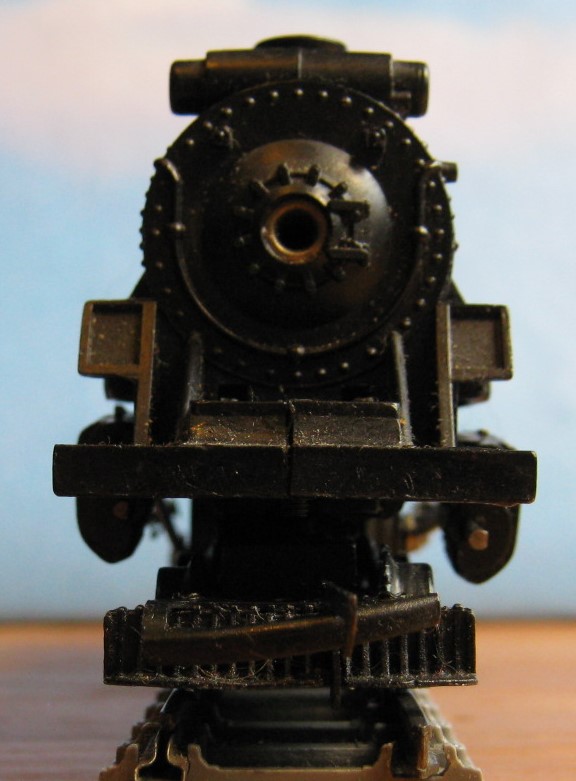

Front view with working light. I have just noticed that the coupling is bent.

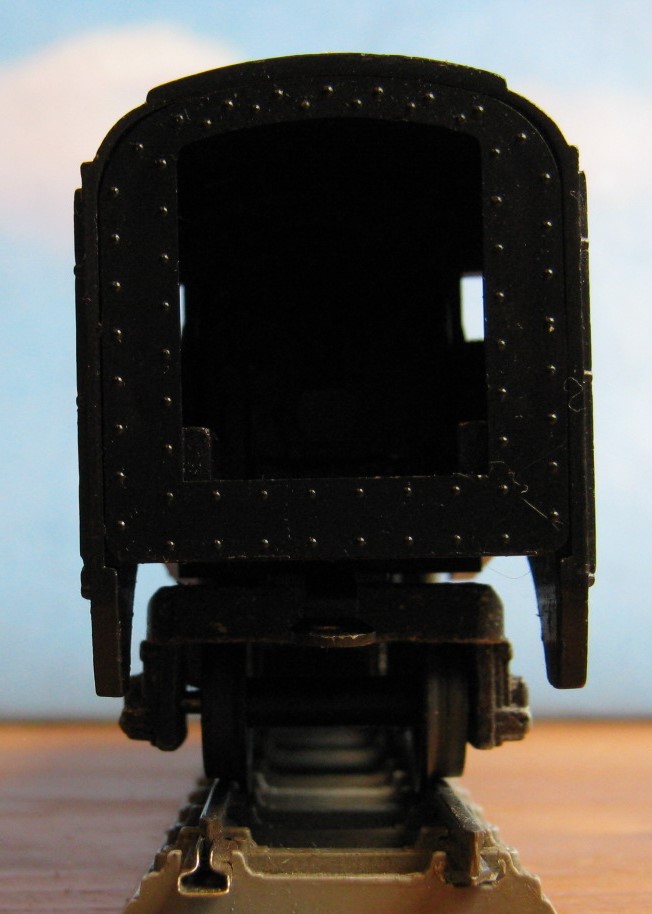

The cab sits quite deep, sadly the camera has not picked up the cab details

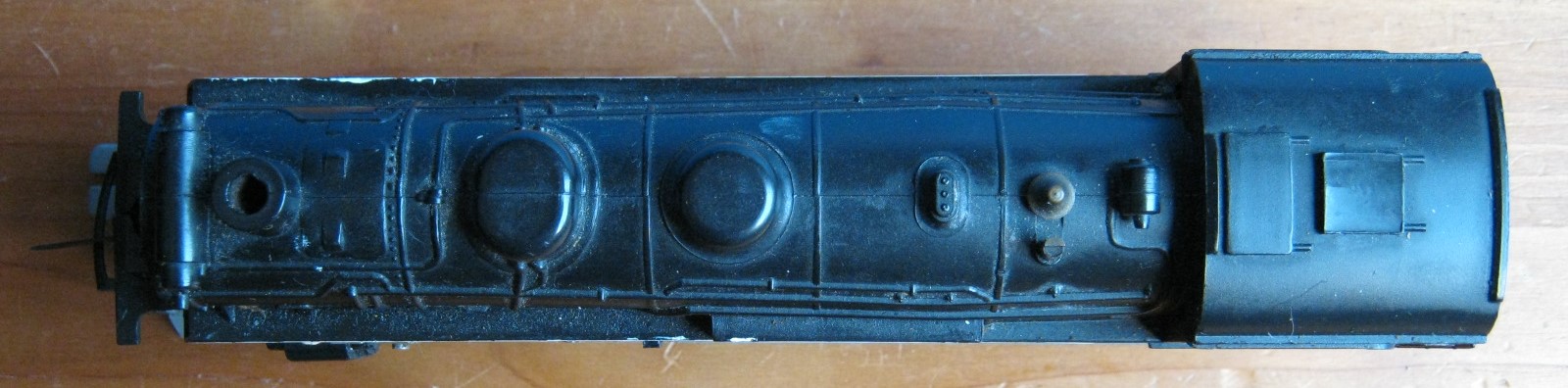

Top view, note the brass bell and whistle

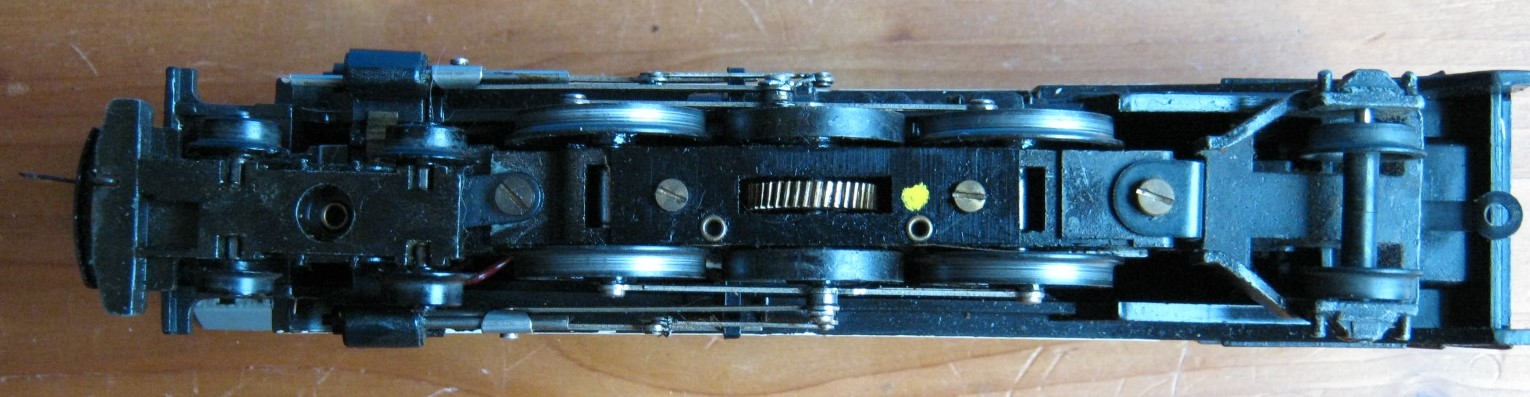

underview, at first glance it could be a Princess you are looking at.

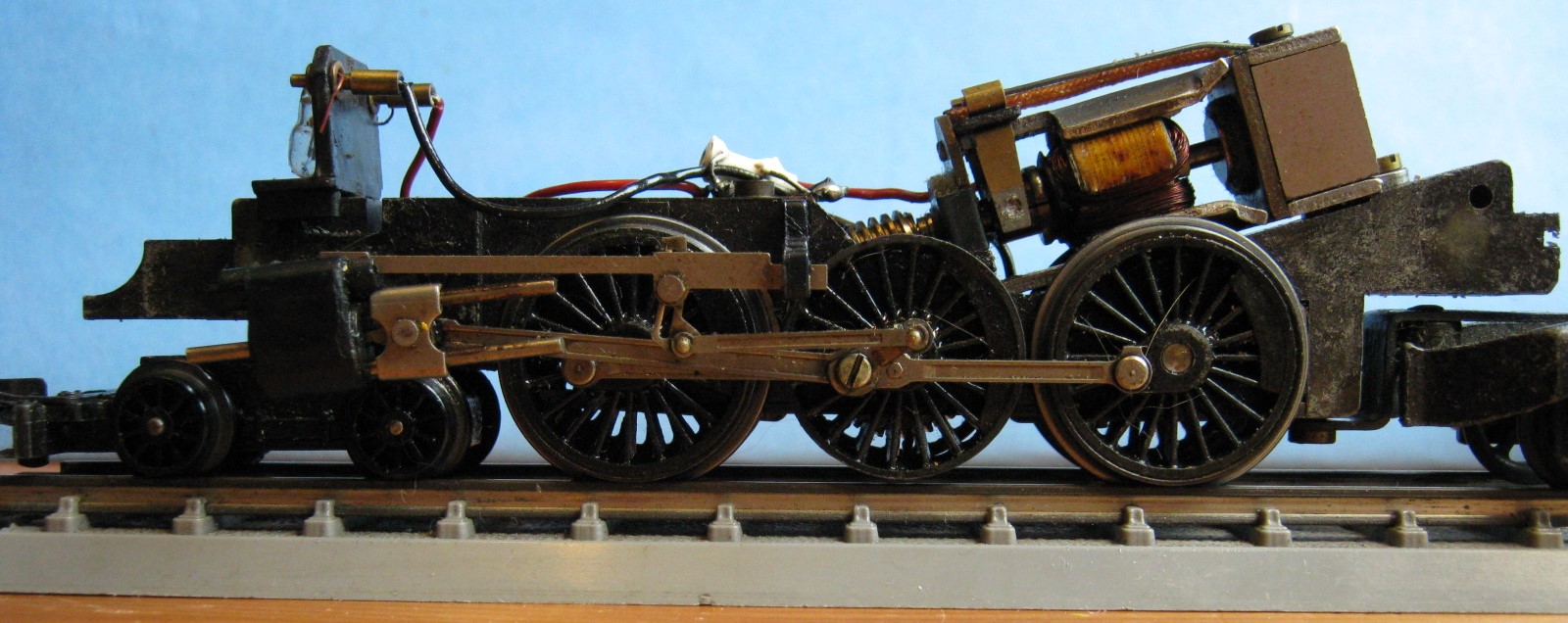

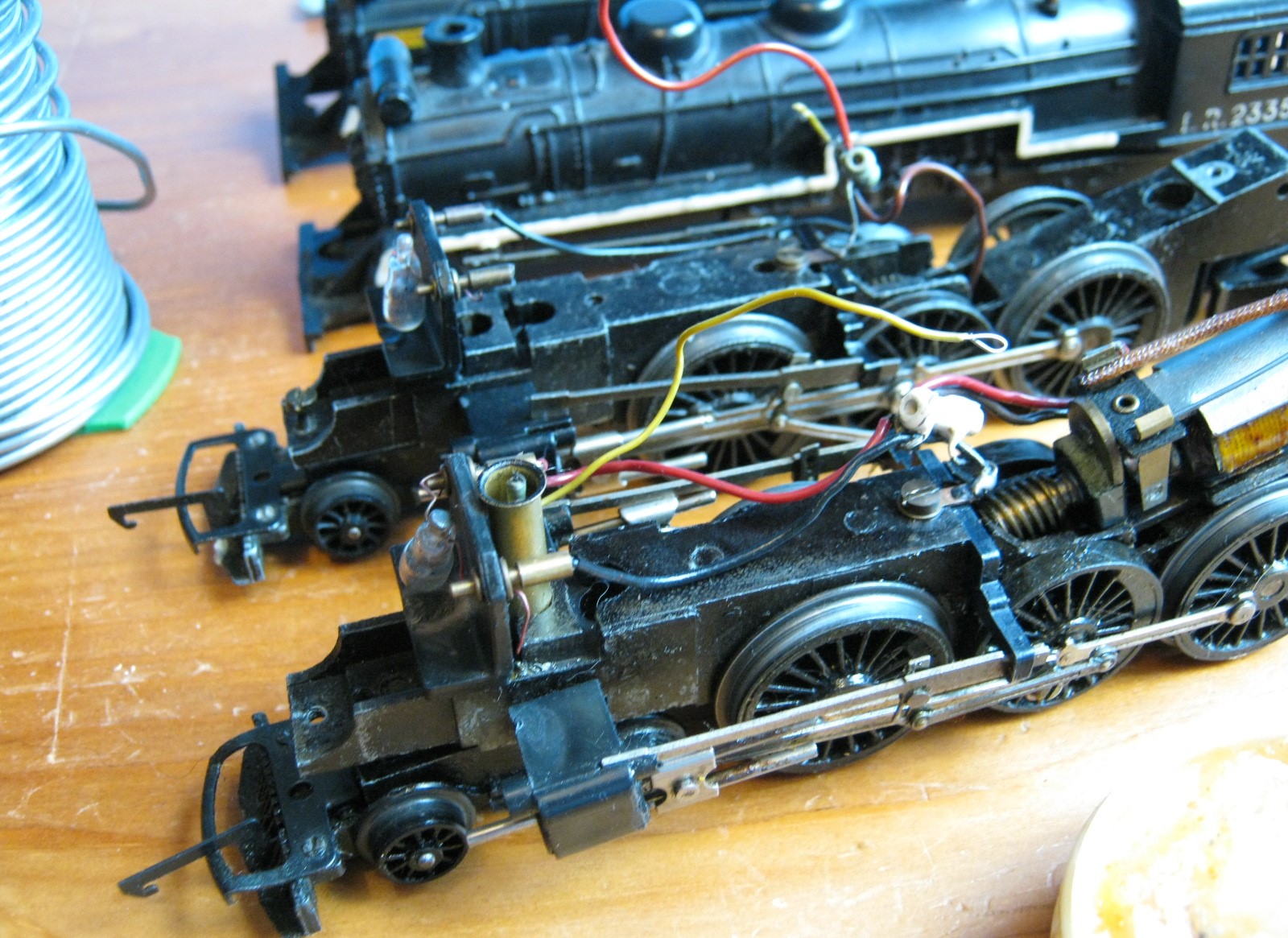

On taking this picture I noticed it did not have a smoke unit.  Two locomotives, but only one is a runner, the second one in on display in a showcase and is robbed for spare parts. Now the Seuthe smoke unit sits happy in the runner. The non-runner on the right has no motor fitted.  The motor above has several burn marks on the coils, but does run very well. (By placing the smoke unit in my 1959 locomotive, I now made it a 1962 locomotive, Sometimes a small adjustment to a model can make puting a date to a locomotive very difficult for hobby historians).

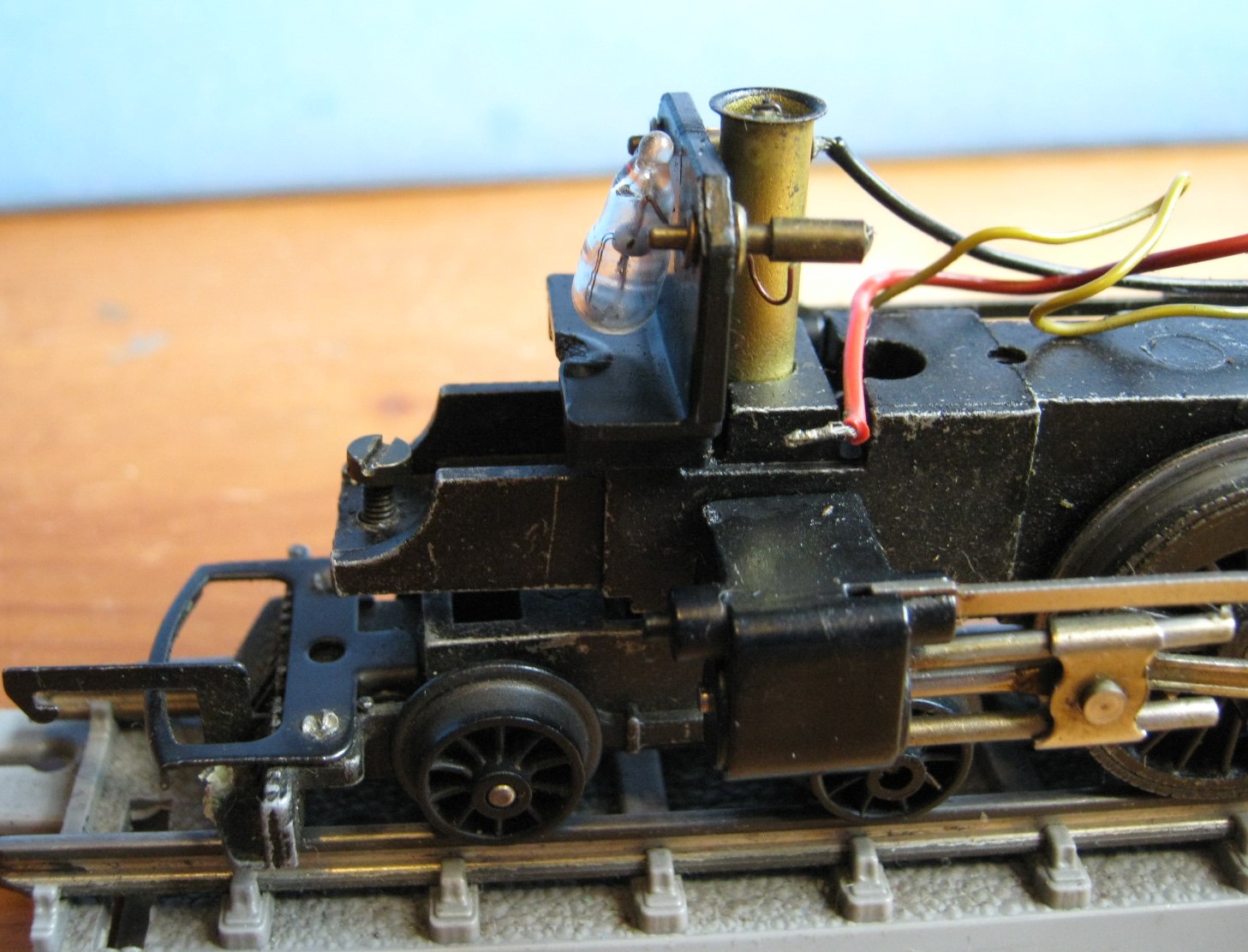

Close up of the smoke unit and electric bulb

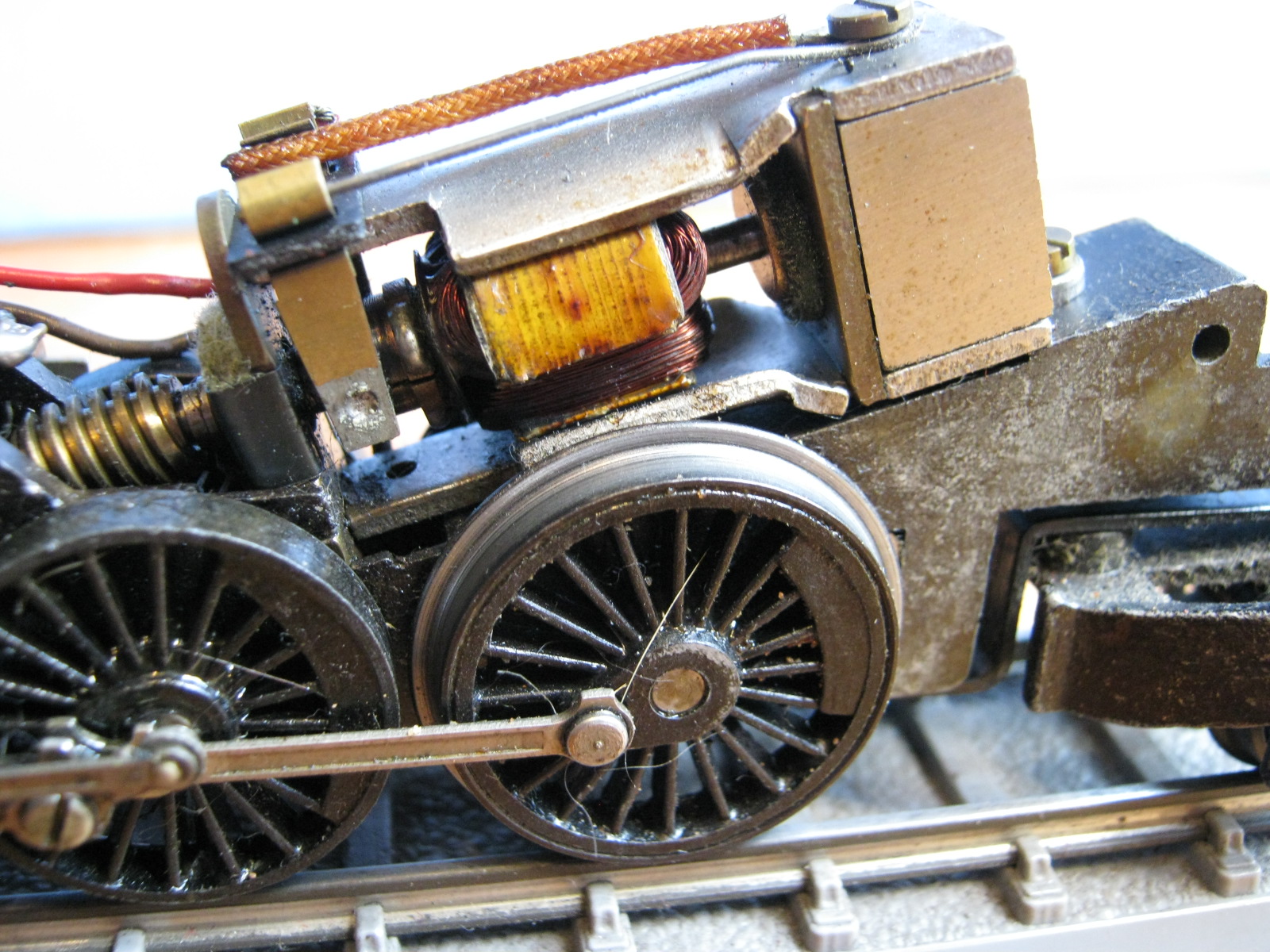

The X04 motor, still running after 70 years!

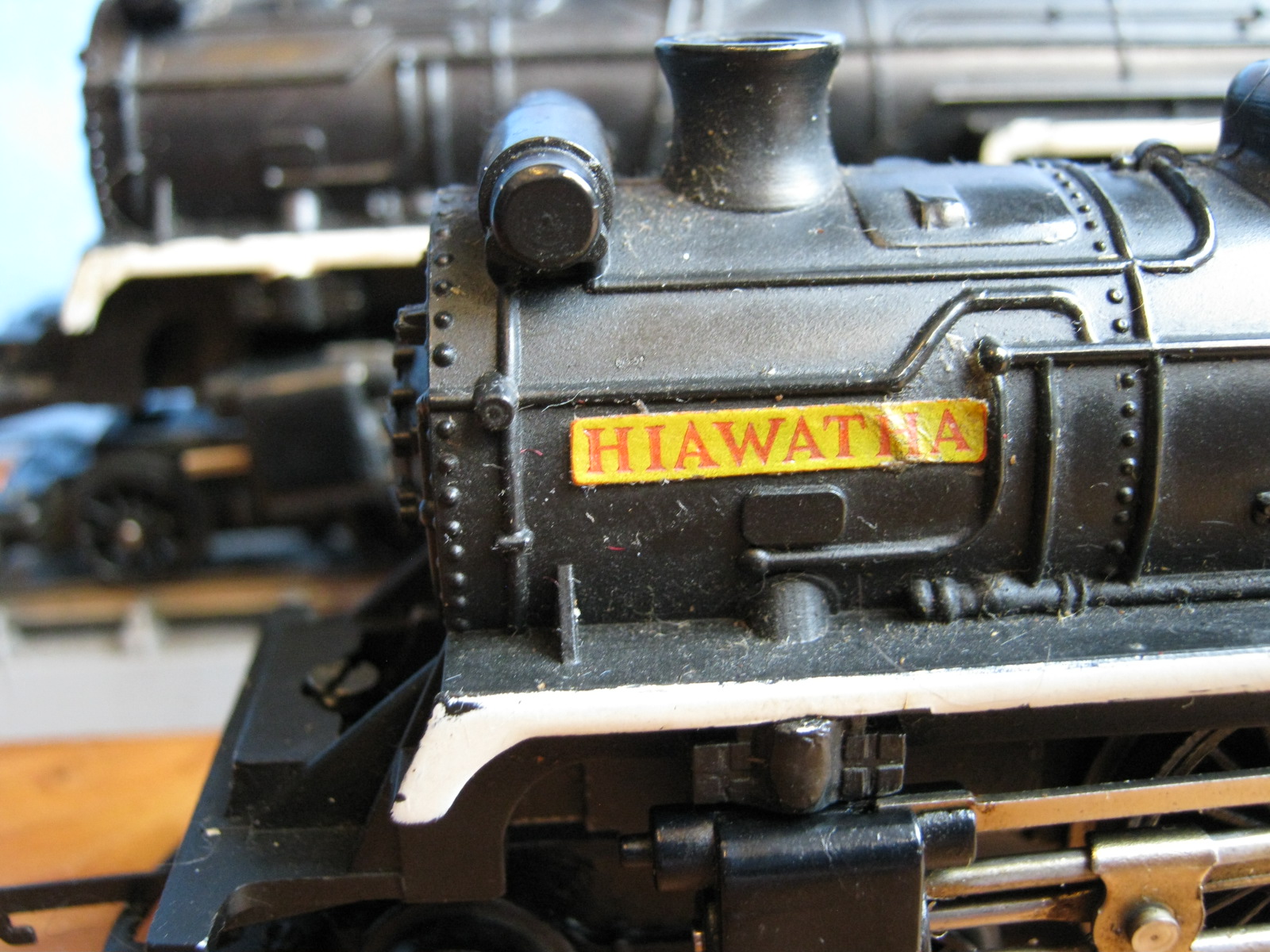

The "Hiawatha" paper label on the non-runner

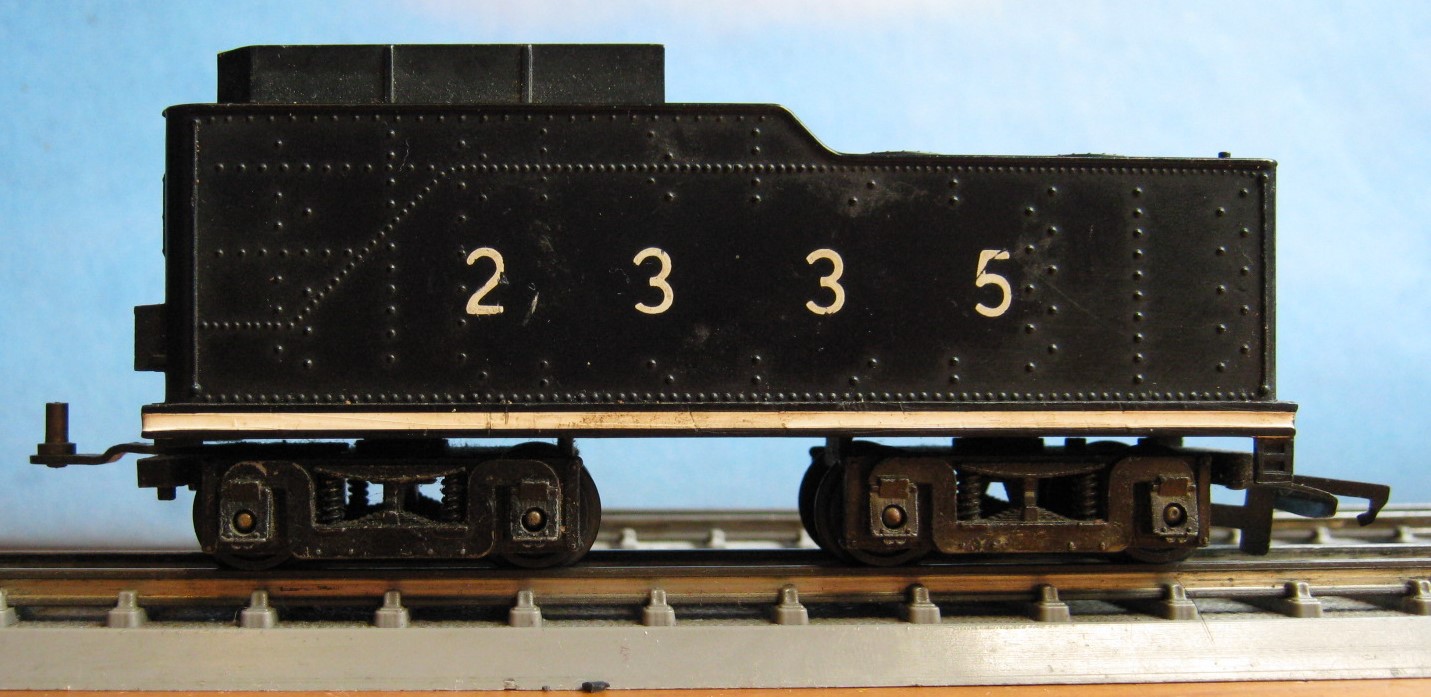

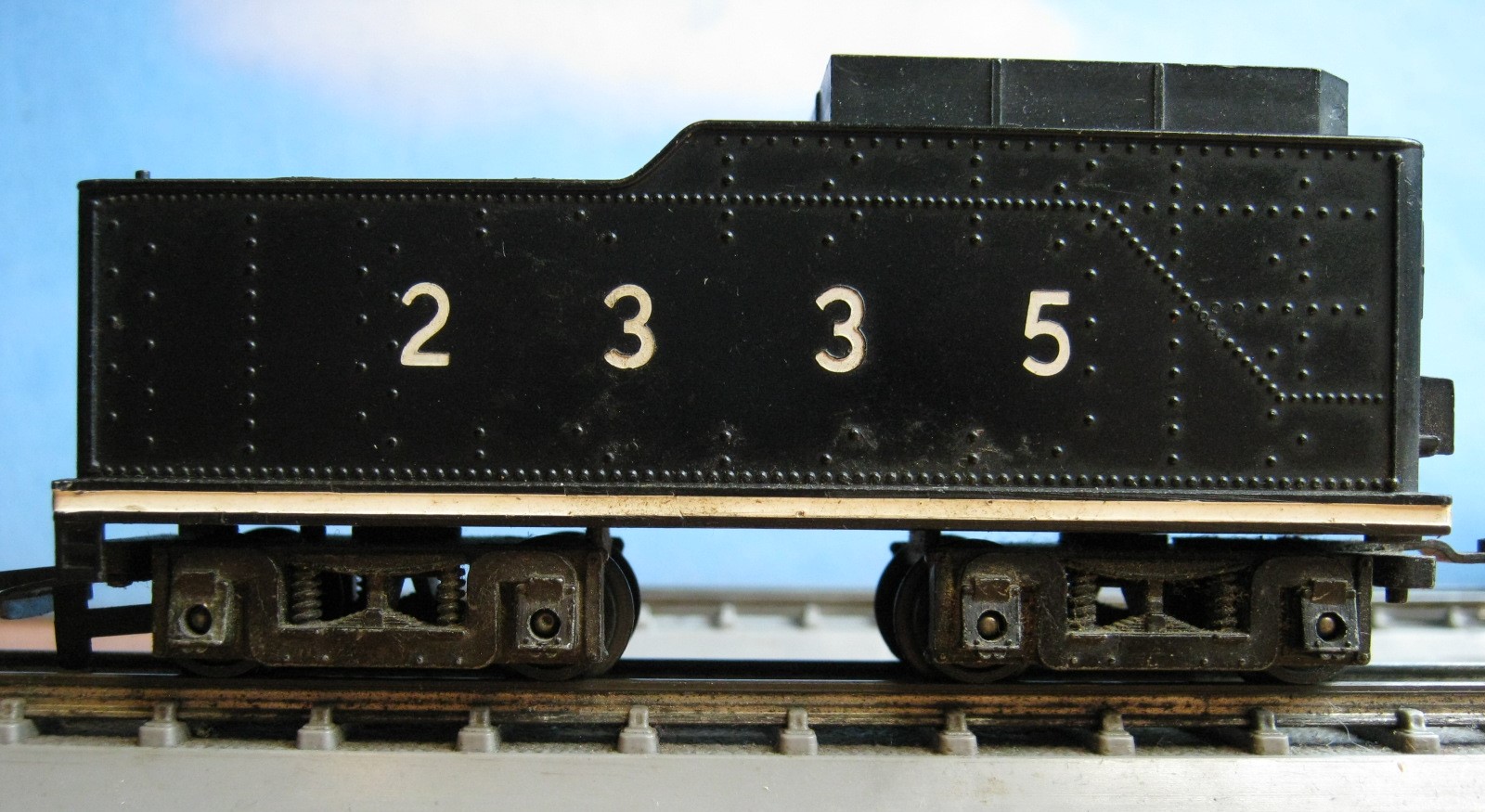

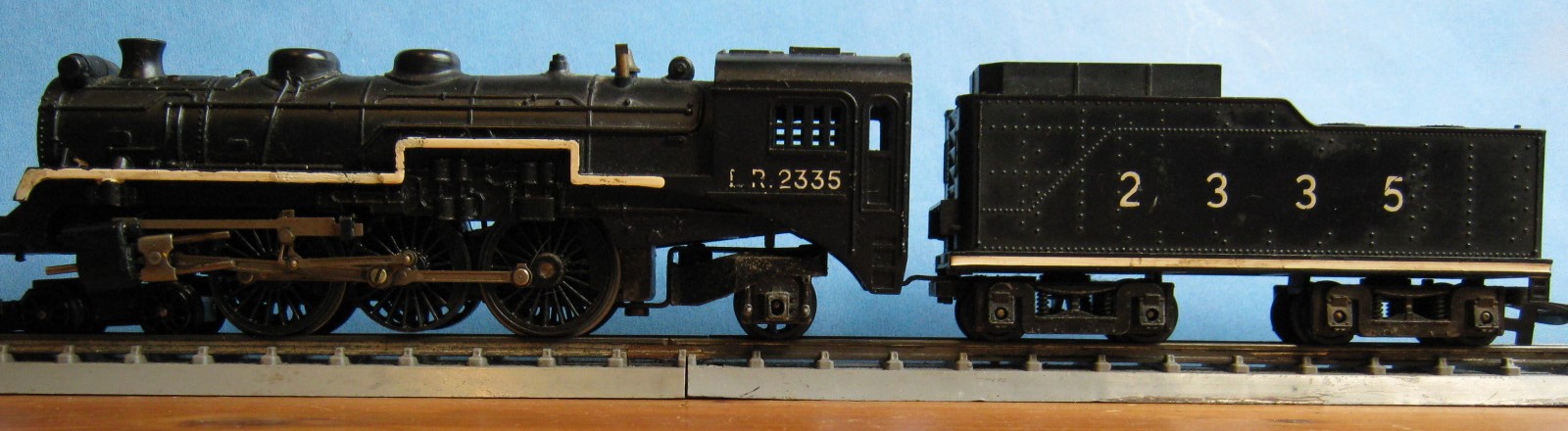

Both side views of the tender, that could be perchased  separately

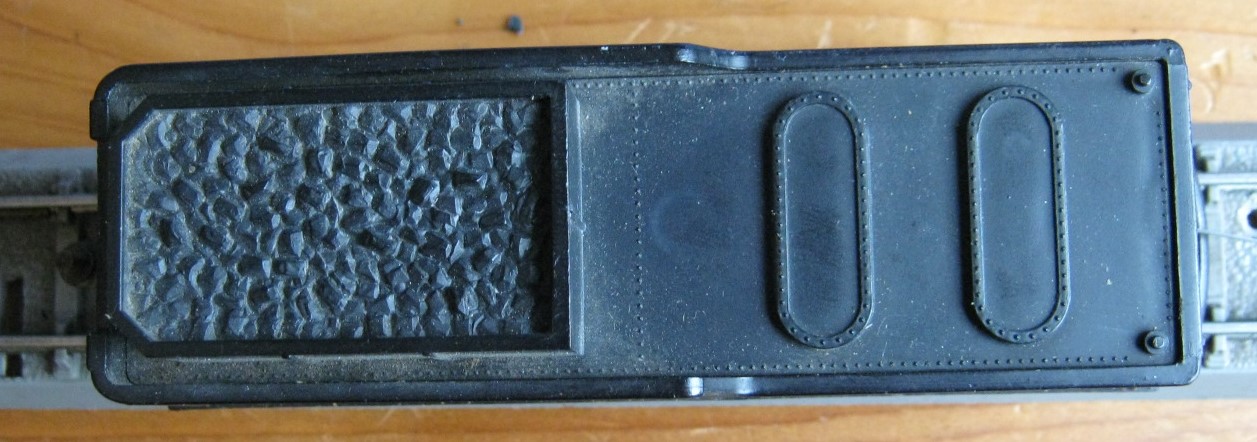

Top view showing the realistic coal load

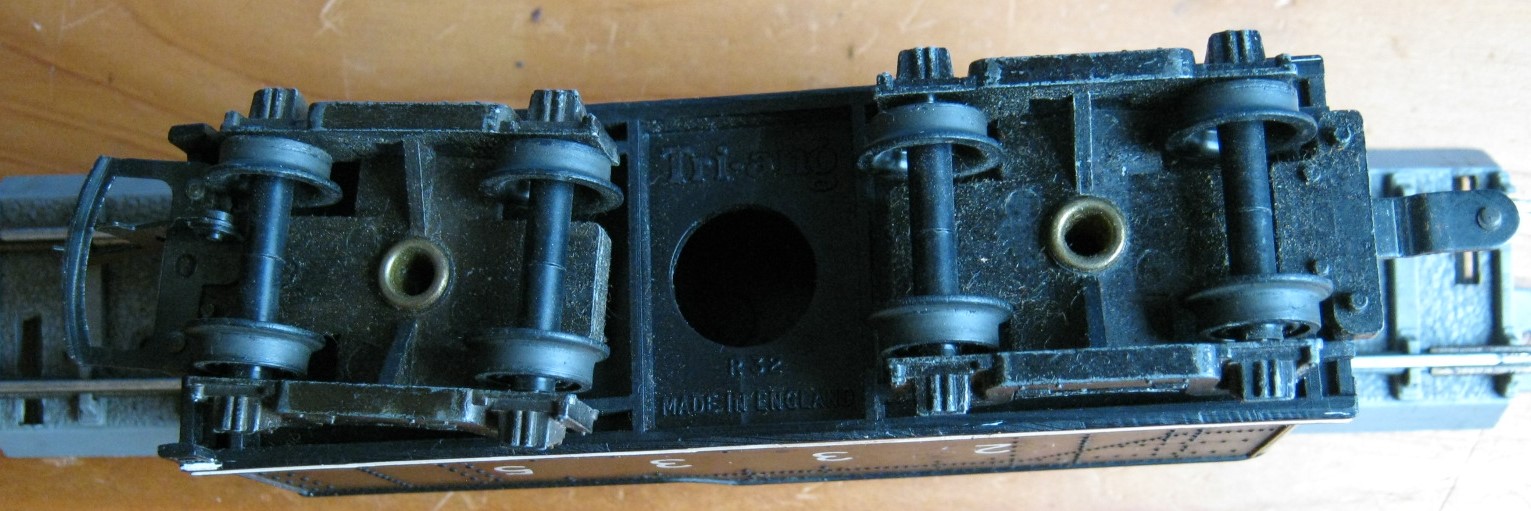

Bogies fitted, very much like on coaches

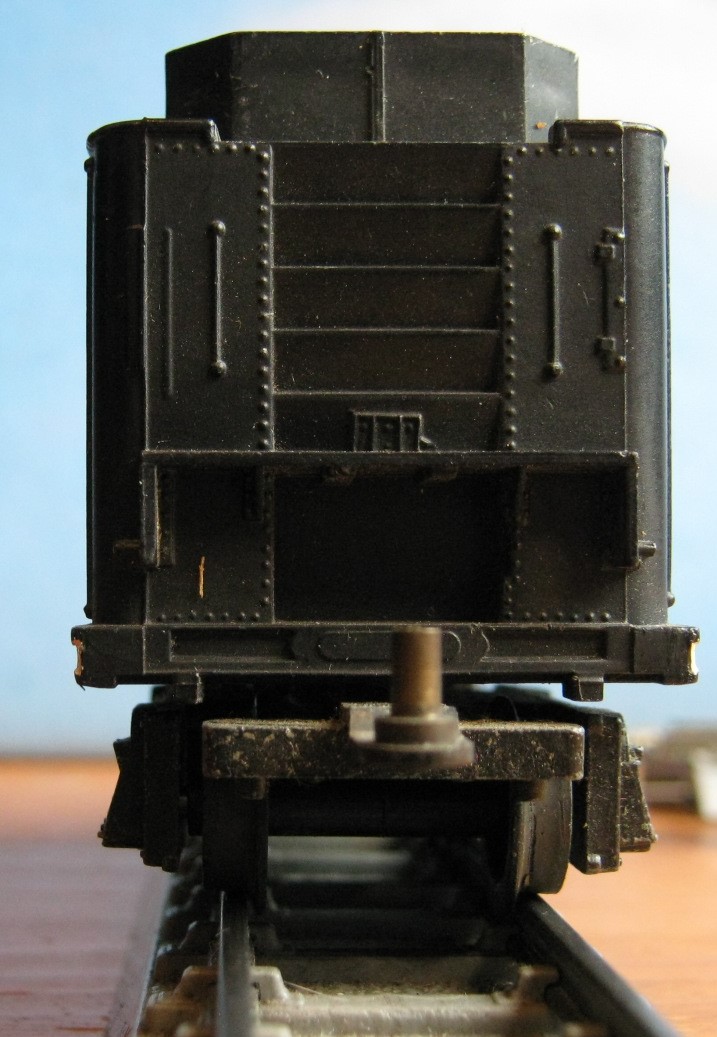

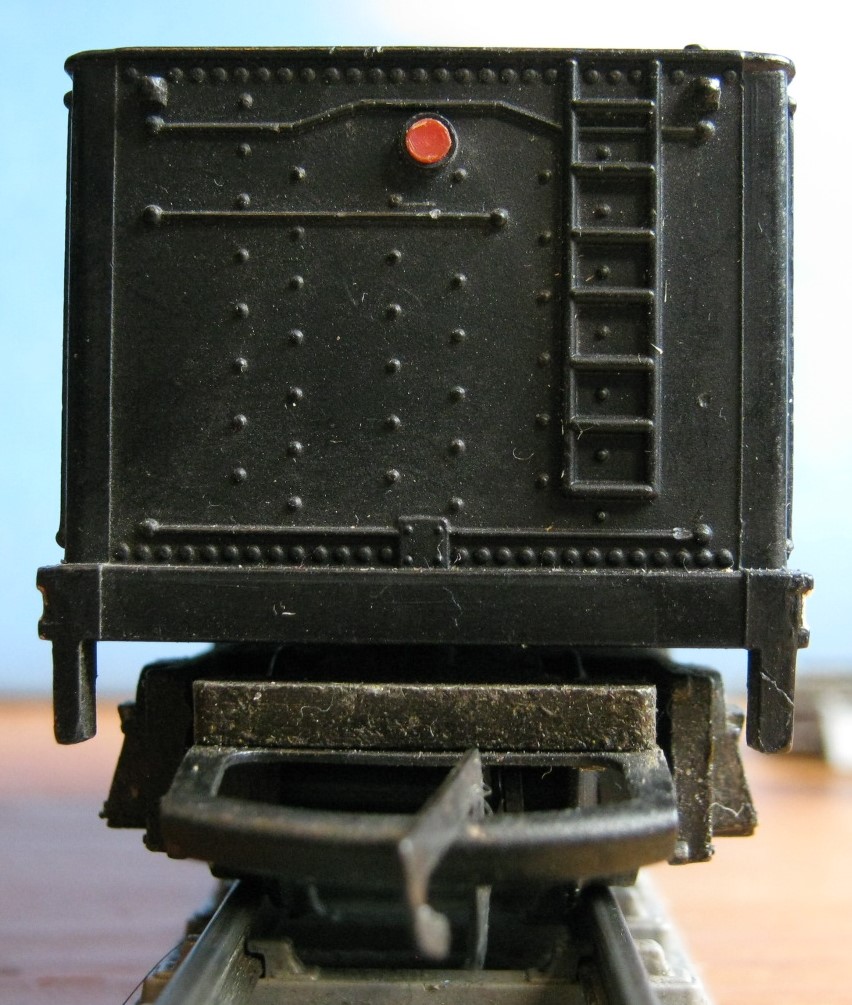

Both end views of the tender, I love the little red plastic light on the end of the tender.

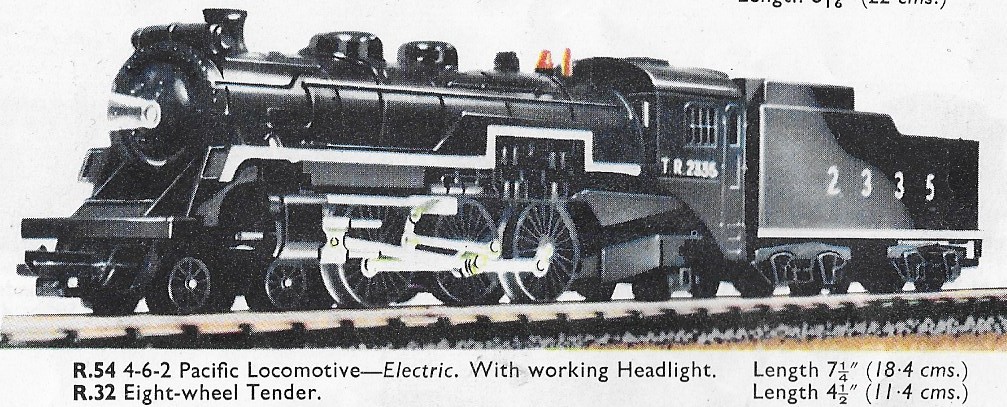

Triang Catalogues illustrating the American Pacific locomotive.

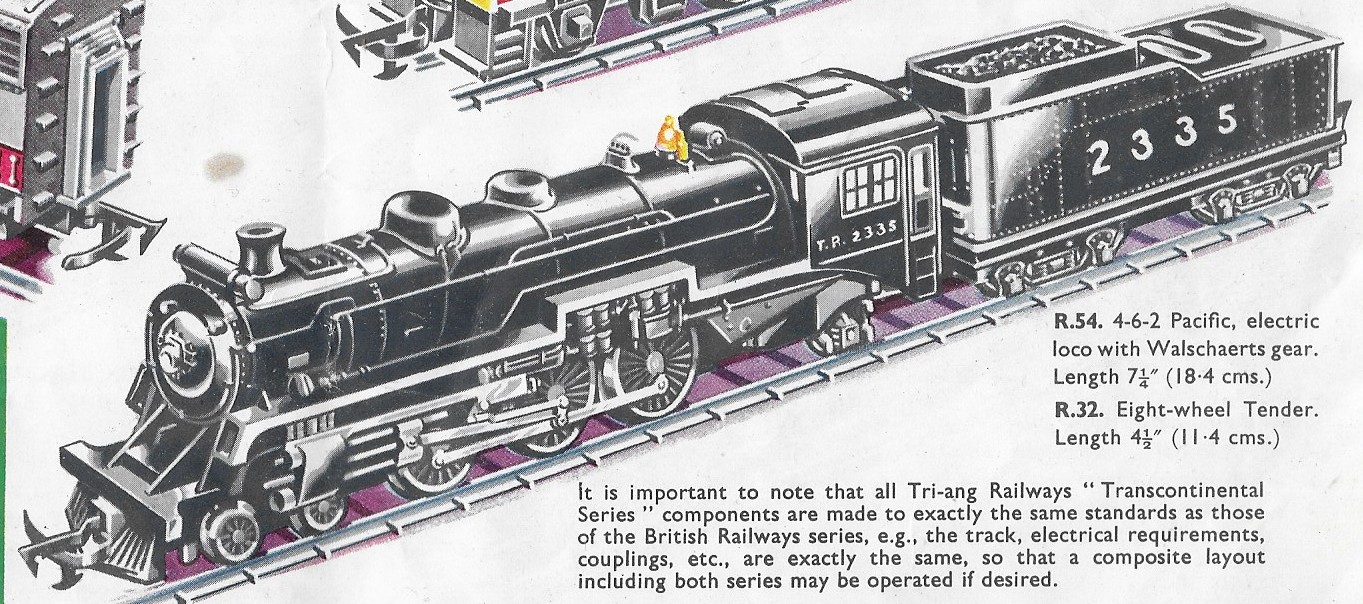

1957 Triang Catalogue

(I do not own the 1955 and 1956 catalogues)

1958 Triang Catalogue

1959 Triang Catalogue

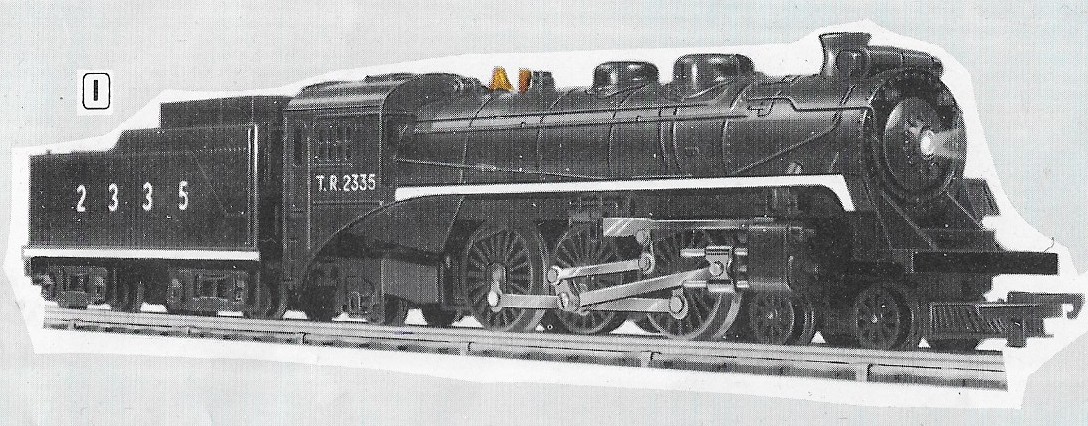

1960 Triang Catalogue

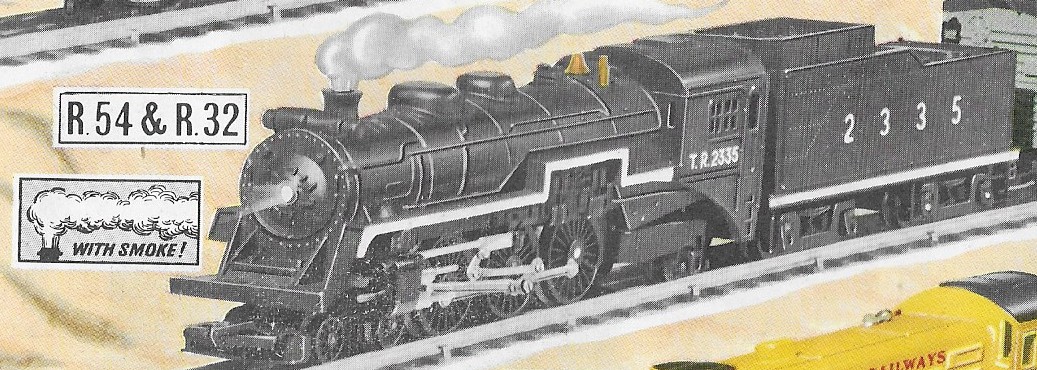

1961 Triang Catalogue

1962 Triang Catalogue

1963 Triang Catalogue
